Structural · S-KVM86

Buckling Restrained Frame Connection Schedule

Materials

Glass / Glazing

Elements

Columns Beams Bracing Connections / Plates

Connections

Braced Frame Connection Bracing Connection Welded Connection Bolted Connection

About this detail

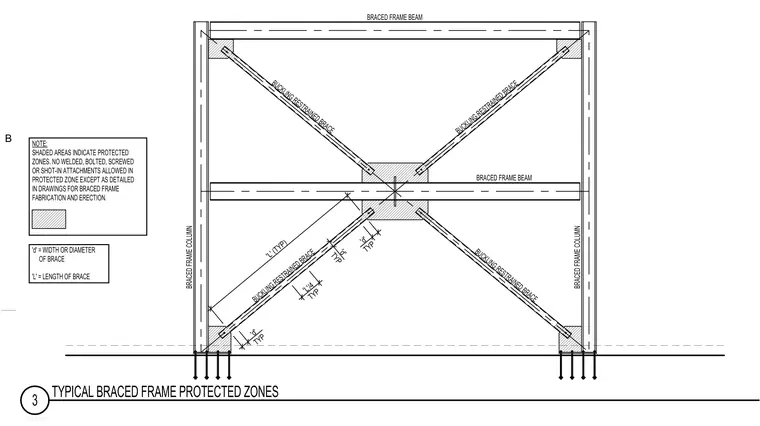

Protected zones within a braced frame assembly comprise braced frame columns, braced frame beams, and buckling restrained braces. Shaded areas denote protected zones where no welded, bolted, screwed, or shot-in attachments are permitted except as detailed for frame fabrication and erection. Dimensions designate the brace width or diameter as 'd' and length as 'L', with protected zone extents defined relative to these parameters.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
