Roof joists bear atop a wide flange beam with required bolts for spans of forty feet or greater. K-series joists utilize angle stabilizers measuring one and one-half inches by one and one-half inches by one-quarter inch by one foot on each side, while long-span joists use angle stabilizers measuring three inches by three inches by one-quarter inch by one foot on each side. Shim plates are specified at one-eighth inch for K-series joists and one-quarter inch for long-span joists. Fillet welds of three-sixteenths inch secure the connections as indicated, maintaining a maximum one-half inch clearance.

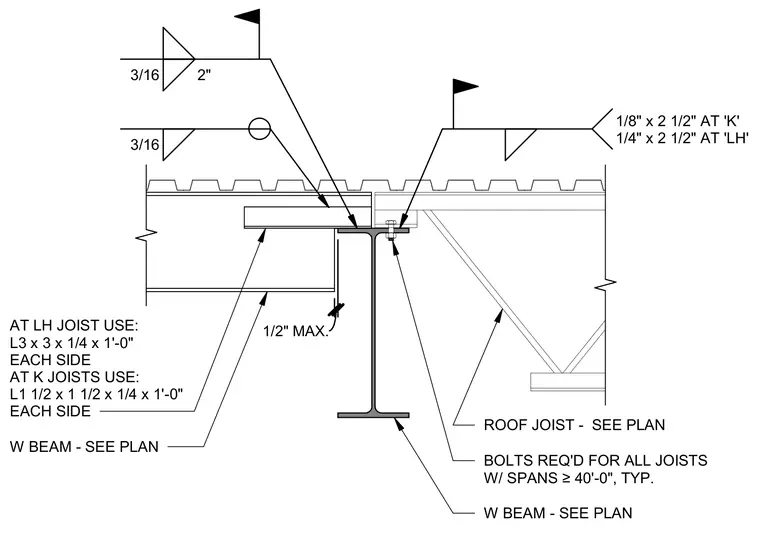

ROOF JOIST - SEE PLAN BOLTS REQ'D FOR ALL JOISTS W/ SPANS ≥40'-0", TYP. 1/8" x 2 1/2" AT 'K' 1/4" x 2 1/2" AT 'LH' 3/16 AT LH JOIST USE: L3 x 3 x 1/4 x 1'-0" EACH SIDE AT K JOISTS USE: L1 1/2 x 1 1/2 x 1/4 x 1'-0" EACH SIDE W BEAM - SEE PLAN W BEAM - SEE PLAN 3/16 2" 1/2" MAX.
