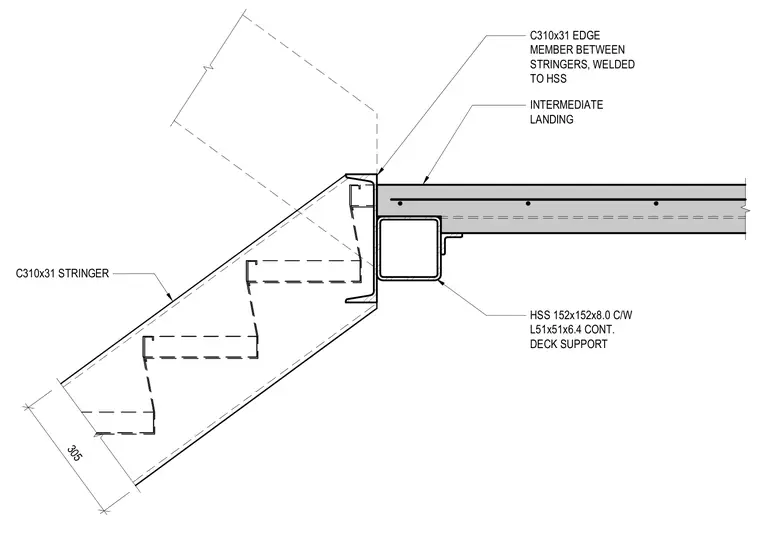

An intermediate stair landing framing assembly featuring a C310x31 channel edge member welded to a hollow structural section landing support. The hollow structural section is an HSS 152x152x8.0 complete with a continuous L51x51x6.4 angle deck support. A C310x31 stair stringer connects to the edge member assembly.
C310x31 EDGE MEMBER BETWEEN STRINGERS, WELDED TO HSS INTERMEDIATE LANDING HSS 152x152x8.0 C/W L51x51x6.4 CONT. DECK SUPPORT C310x31 STRINGER 305
