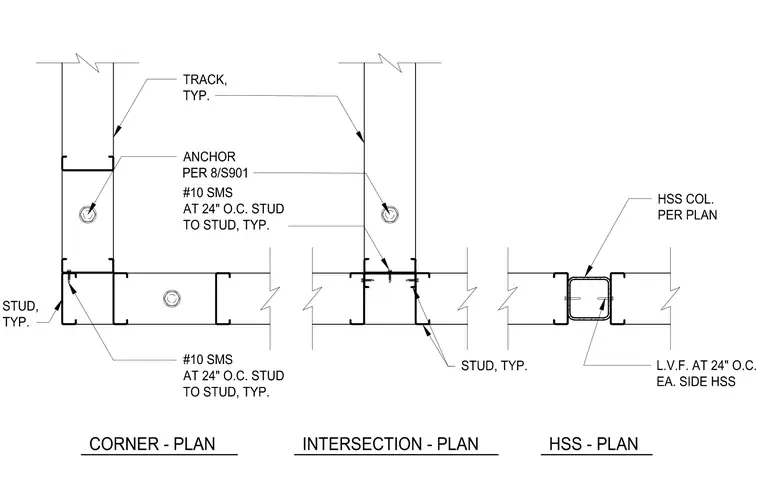

Standard framing configurations for cold-formed steel wall assemblies. Corner and intersection conditions utilize tracks and studs fastened with number 10 sheet metal screws at 24 inches on center. Anchors are installed per sheet 8/S901. The hollow structural section column is centered within the wall line, with light-gauge framing members attached to each side of the hollow structural section at 24 inches on center.
