Structural · S-KV7SW

Elevator Girt to Column Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

HSS Connection Welded Connection Bolted Connection Expansion / Slip Connection

About this detail

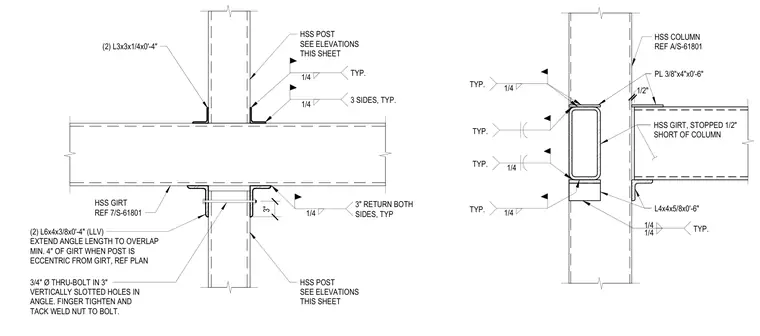

An elevator girt connects to an HSS column through a combination of welded plates, structural steel angles, and slip-resistant through-bolts. Two L6x4x3/8x0'-4" long-leg-vertical angles attach with three-quarter-inch diameter through-bolts installed in three-inch vertically slotted holes, finger-tightened with nuts tack-welded to the bolts. Two L3x3x1/4x0'-4" angles and a 3/8" x 4" x 0'-6" plate tie the HSS post to the girt with quarter-inch fillet welds on three sides featuring three-inch returns. An L4x4x5/8x0'-6" angle supports the girt assembly, which stops one-half inch short of the HSS column face.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
