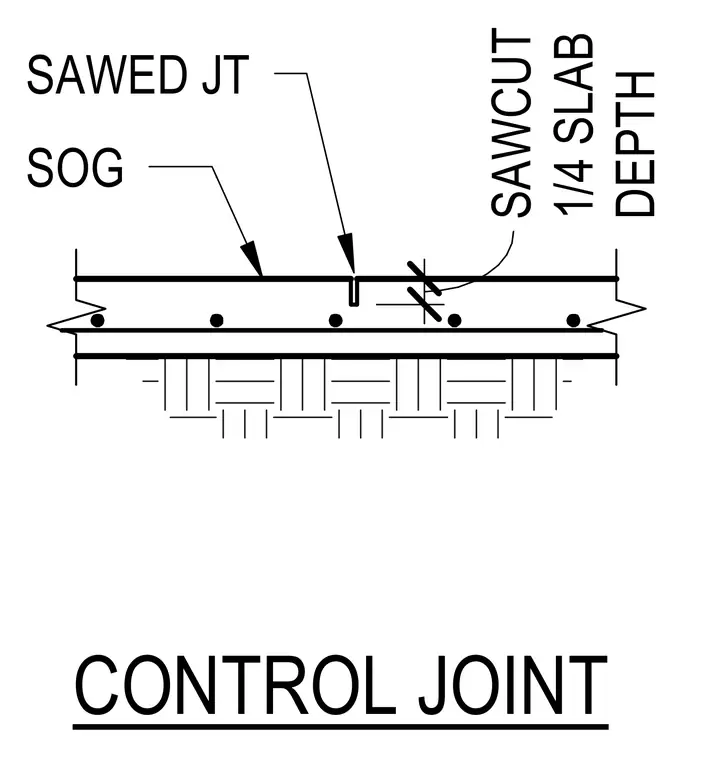

A sawed control joint is formed in a concrete slab on grade over a compacted subgrade. The sawcut extends to a depth of one-quarter of the total slab depth to induce controlled cracking.
