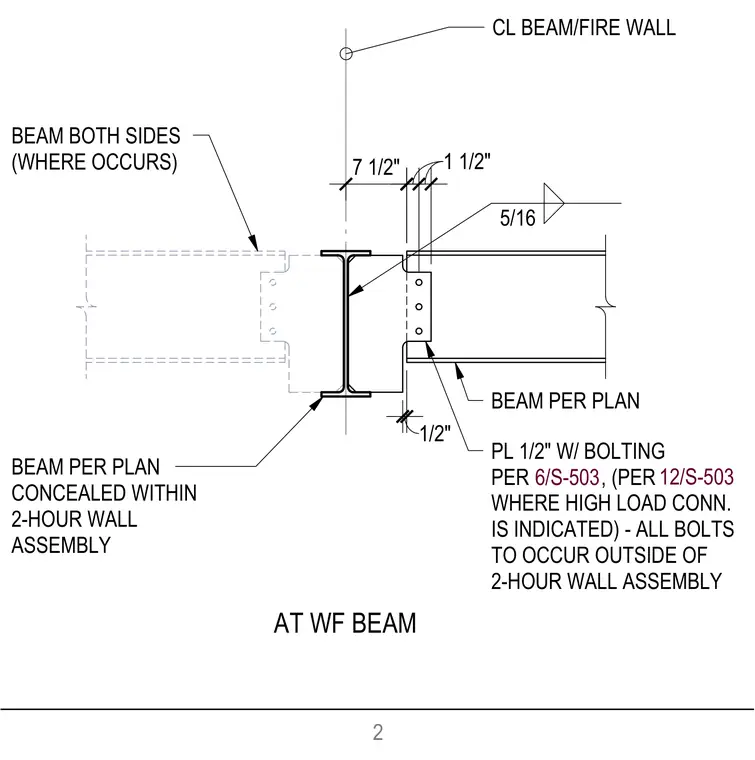

A wide flange beam serves as the centerline support at a two-hour fire wall assembly, receiving framing beams on one or both sides as required by the plan. A half-inch plate connects the framing beam with bolting per schedule or per high load connection notes, ensuring all bolts remain located outside the two-hour wall assembly. A five-sixteenths inch fillet weld secures the connection plate to the supporting wide flange beam web. Beams concealed within the wall assembly are installed per plan requirements.
BEAM PER PLAN BEAM BOTH SIDES (WHERE OCCURS) BEAM PER PLAN CONCEALED WITHIN 2-HOUR WALL ASSEMBLY 5/16 CL BEAM/FIRE WALL AT WF BEAM PL 1/2" W/ BOLTING PER , (PER WHERE HIGH LOAD CONN. IS INDICATED) - ALL BOLTS TO OCCUR OUTSIDE OF 2-HOUR WALL ASSEMBLY 1 1/2" 1/2" 7 1/2" 6/S-503 12/S-503 CONN. PER (PER 2
