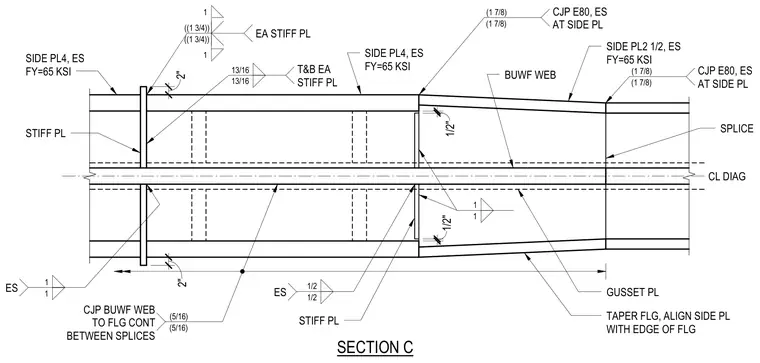

A built-up wide flange diagonal splice connection incorporates grade sixty-five side plates and stiffener plates on each side. The web of the built-up member connects to the flange continuously between splices using five-sixteenths fillet welds. Side plates of four-inch and two-and-one-half-inch thicknesses are welded with complete joint penetration welds using E eighty electrodes. Transverse stiffener plates are positioned along the members with specified clearances and weld sizes. Additional gusset plates and tapered flanges align with the side plates to complete the heavy structural load transfer assembly.
CL DIAG SPLICE 2" 2" SIDE PL4, ES FY=65 KSI STIFF PL SIDE PL4, ES FY=65 KSI SIDE PL2 1/2, ES FY=65 KSI BUWF WEB 1/2" 1/2" STIFF PL TAPER FLG, ALIGN SIDE PL WITH EDGE OF FLG ES 1/2 1/2 1 1 SECTION C CJP E80, ES AT SIDE PL (1 7/8) (1 7/8) CJP E80, ES AT SIDE PL (1 7/8) (1 7/8) ES 1 1 T&B EA STIFF PL 13/16 13/16 EA STIFF PL 1 1 ((1 3/4)) ((1 3/4)) GUSSET PL CJP BUWF WEB TO FLG CONT BETWEEN SPLICES (5/16) (5/16)
