Exterior Concrete Tilt-Up Wall Panel

Materials

Concrete Steel

Elements

Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

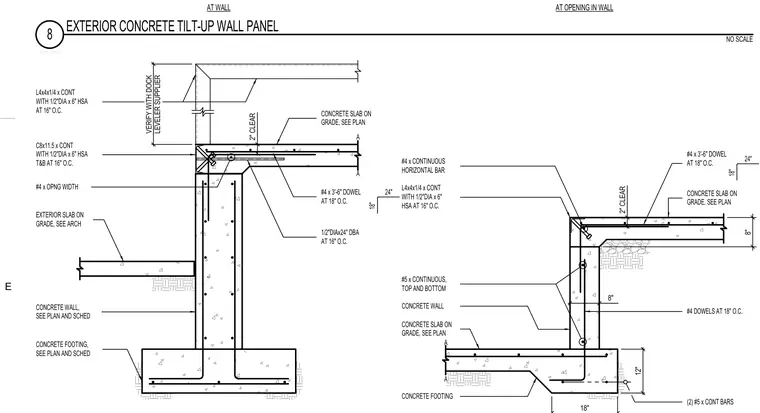

Exterior concrete tilt-up wall panel conditions at a solid wall and at an opening in the wall are supported by a concrete footing and tied into a concrete slab on grade. The foundation consists of a concrete footing reinforced with two continuous number 5 bars and number 4 dowels spaced at 18 inches on center. The concrete wall connects to a continuous C8x11.5 channel secured with half-inch diameter by 6-inch heavy-duty sleeve anchors top and bottom at 16 inches on center, alongside continuous L4x4x1/4 angles anchored with half-inch diameter by 6-inch heavy-duty sleeve anchors at 16 inches on center. Additional reinforcing includes number 4 continuous horizontal bars, number 4 opening width bars, and number 4 by 3-foot-6-inch dowels at 18 inches on center. A 2-inch clearance is maintained and verified with the dock leveler supplier at the upper wall condition. The exterior slab on grade ties into the assembly with half-inch diameter by 24-inch dowel bar anchors at 16 inches on center.
