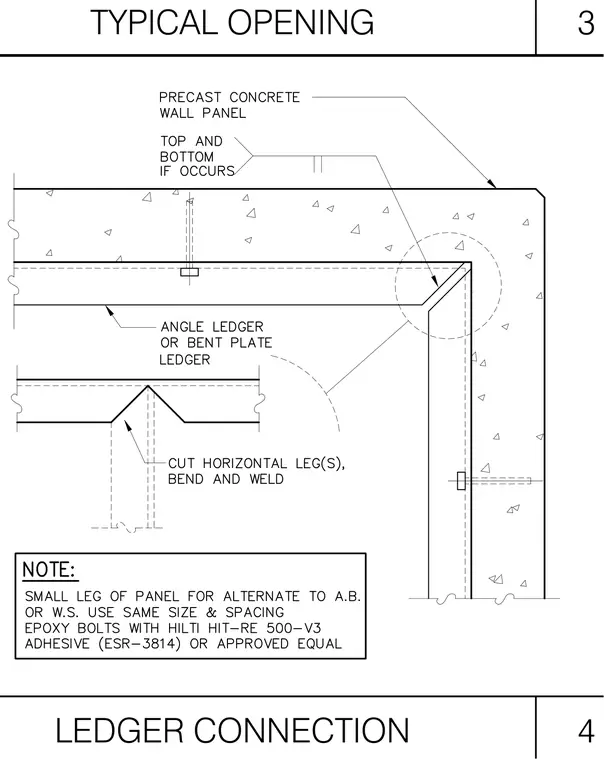

This connection detail joins a precast concrete wall panel using an angle ledger or bent plate ledger. The assembly incorporates cut horizontal legs that are bent and welded as required at corners. Epoxy bolts utilize Hilti HIT-RE 500-V3 adhesive or an approved equal, maintaining the same size and spacing as specified for alternate anchor bolts.
