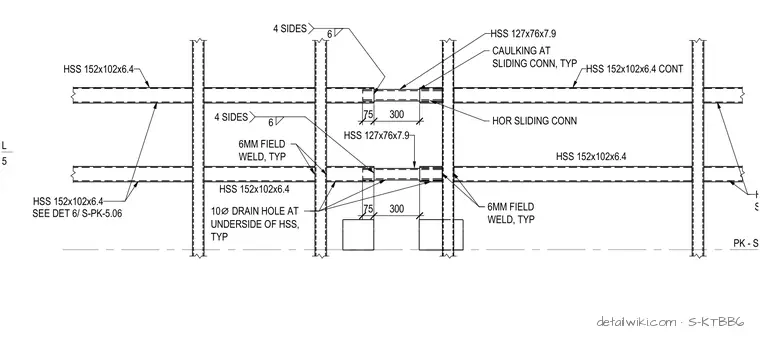

The drawing details horizontal sliding connections between hollow structural section steel members, including caulking, field welds, and continuous members. It also specifies a drain hole on the underside of the hollow structural section for moisture management. Dimensional callouts indicate spacing for the sliding connection components.
Text on the drawing
PK - SECOND LEVEL 300 75 300 75 HSS 152x102x6.4 HSS 152x102x6.4 HSS 152x102x6.4 HSS 152x102x6.4 CONT HSS 152x102x6.4 HSS 127x76x7.9 HSS 127x76x7.9 HSS 152x102x6.4 6 4 SIDES 6 4 SIDES 10 ⌀ DRAIN HOLE AT UNDERSIDE OF HSS, TYP SEE DET 6/ S-PK-5.06 SEE DET 6/ S-PK-5.06 HOR SLIDING CONN CAULKING AT SLIDING CONN, TYP 6MM FIELD WELD, TYP 6MM FIELD WELD, TYP PK - THIRD LEVEL 112.25
