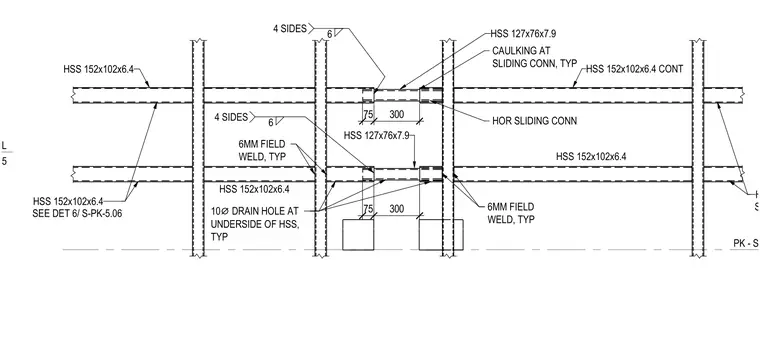

Hollow structural section members including HSS 152x102x6.4 and HSS 127x76x7.9 profiles connect through horizontal sliding joints. Six millimeter field welds are specified typically on four sides. Ten millimeter diameter drain holes are located at the underside of the hollow structural section members typically. Caulking is applied at the sliding connection.
PK - SECOND LEVEL 300 75 300 75 HSS 152x102x6.4 HSS 152x102x6.4 HSS 152x102x6.4 HSS 152x102x6.4 CONT HSS 152x102x6.4 HSS 127x76x7.9 HSS 127x76x7.9 HSS 152x102x6.4 6 4 SIDES 6 4 SIDES 10 ⌀ DRAIN HOLE AT UNDERSIDE OF HSS, TYP SEE DET 6/ S-PK-5.06 SEE DET 6/ S-PK-5.06 HOR SLIDING CONN CAULKING AT SLIDING CONN, TYP 6MM FIELD WELD, TYP 6MM FIELD WELD, TYP PK - THIRD LEVEL 112.25
