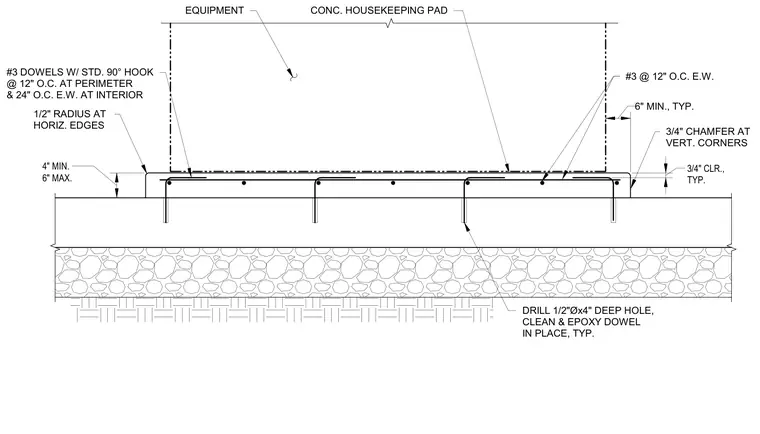

A concrete housekeeping pad sits atop a structural slab on grade with a minimum thickness ranging from four to six inches. Number three reinforcing dowels with standard ninety-degree hooks are anchored into drilled holes using epoxy at twelve inches on center at the perimeter and twenty-four inches on center each way at the interior. The pad is reinforced with number three bars at twelve inches on center each way with three-quarters of an inch of typical clearance. Vertical corners feature a three-quarters of an inch chamfer and horizontal edges have a half-inch radius.
1/2" RADIUS AT HORIZ. EDGES #3 DOWELS W/ STD. 90° HOOK @ 12" O.C. AT PERIMETER & 24" O.C. E.W. AT INTERIOR EQUIPMENT CONC. HOUSEKEEPING PAD 6" MIN., TYP. #3 @ 12" O.C. E.W. 3/4" CHAMFER AT VERT. CORNERS DRILL 1/2"Øx4" DEEP HOLE, CLEAN & EPOXY DOWEL IN PLACE, TYP. 3/4" CLR., TYP. 4" MIN. 6" MAX.
