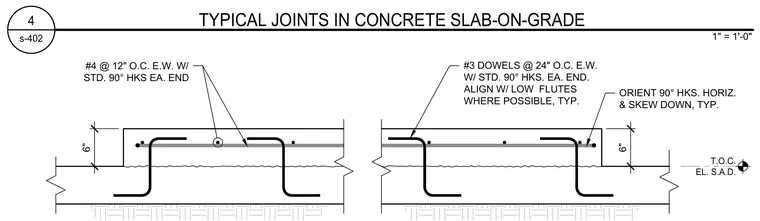

A concrete slab-on-grade joint assembly is reinforced with number four bars spaced at twelve inches on center each way with standard ninety-degree hooks at each end. Number three dowels are placed at twenty-four inches on center each way with standard ninety-degree hooks at each end, aligned with low flutes where possible. Ninety-degree hooks are oriented horizontally and skewed down typically.
6" 6" #4 @ 12" O.C. E.W. W/ STD. 90° HKS EA. END ORIENT 90° HKS. HORIZ. & SKEW DOWN, TYP. #3 DOWELS @ 24" O.C. E.W. W/ STD. 90° HKS. EA. END. ALIGN W/ LOW FLUTES WHERE POSSIBLE, TYP. T.O.C. EL. S.A.D. 4 s-402 TYPICAL JOINTS IN CONCRETE SLAB-ON-GRADE 1" = 1'-0"
