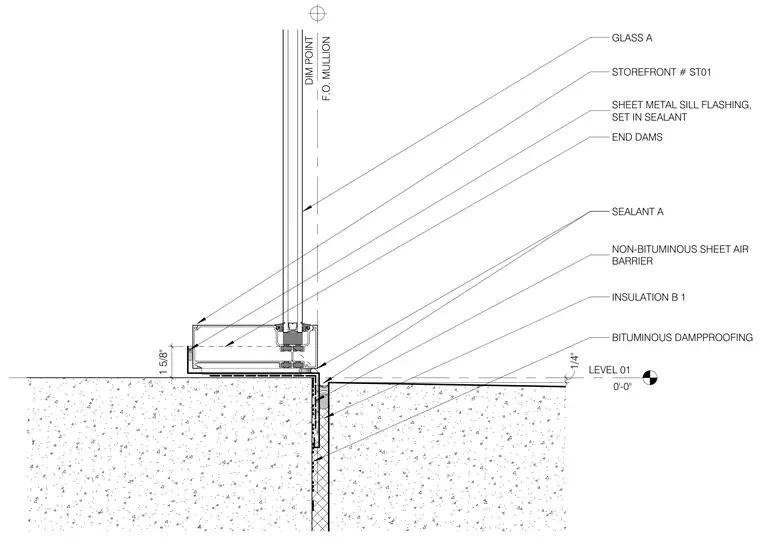

Storefront system ST01 sits atop a concrete substrate at Level 01 with a dimension point set at the face of the mullion. A sheet metal sill flashing is bedded in sealant and includes end dams. The assembly incorporates non-bituminous sheet air barrier, insulation B 1, and bituminous dampproofing at the interface.
LEVEL 01 0'-0" GLASS A STOREFRONT # ST01 SHEET METAL SILL FLASHING, SET IN SEALANT SEALANT A NON-BITUMINOUS SHEET AIR BARRIER INSULATION B 1 BITUMINOUS DAMPPROOFING DIM POINT F.O. MULLION 1 5/8" 1/4" END DAMS
