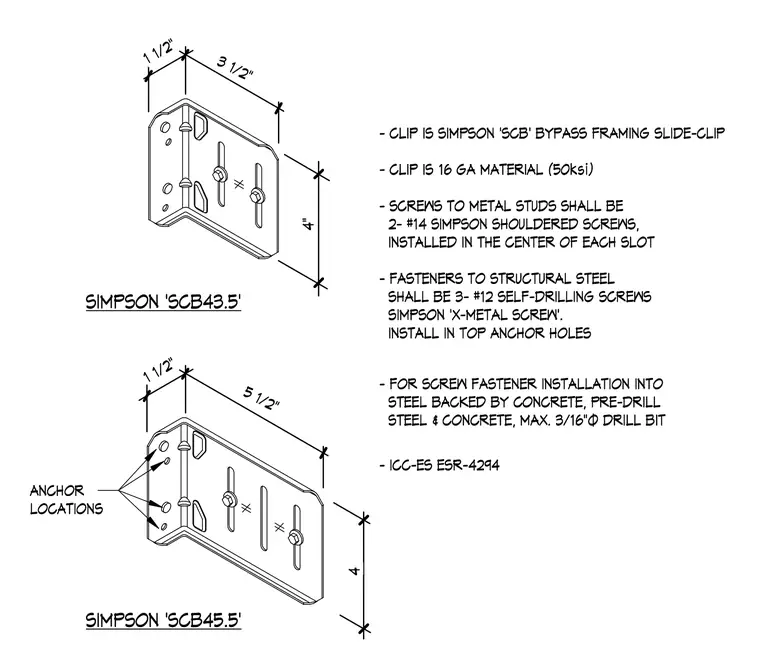

Simpson SCB bypass framing slide-clips are fabricated from 16 gauge 50 ksi steel material and come in models SCB43.5 and SCB45.5. Connection to metal studs requires two number 14 Simpson shouldered screws installed in the center of each slot. Fastening to structural steel utilizes three number 12 self-drilling Simpson X-metal screws installed in the top anchor holes. Screw fastener installation into steel backed by concrete requires pre-drilling the steel and concrete with a maximum 3/16-inch diameter drill bit.
4" 3 1/2" 1 1/2" 4 5 1/2" ANCHOR LOCATIONS SIMPSON 'SCB45.5' - CLIP IS SIMPSON 'SCB' BYPASS FRAMING SLIDE-CLIP - CLIP IS 16 GA MATERIAL (50ksi) - SCREWS TO METAL STUDS SHALL BE 2- #14 SIMPSON SHOULDERED SCREWS, INSTALLED IN THE CENTER OF EACH SLOT - FASTENERS TO STRUCTURAL STEEL SHALL BE 3- #12 SELF-DRILLING SCREWS SIMPSON 'X-METAL SCREW'. INSTALL IN TOP ANCHOR HOLES - FOR SCREW FASTENER INSTALLATION INTO STEEL BACKED BY CONCRETE, PRE-DRILL STEEL & CONCRETE, MAX. 3/16"Ø DRILL BIT SIMPSON 'SCB43.5' 1 1/2" - ICC-ES ESR-4294
