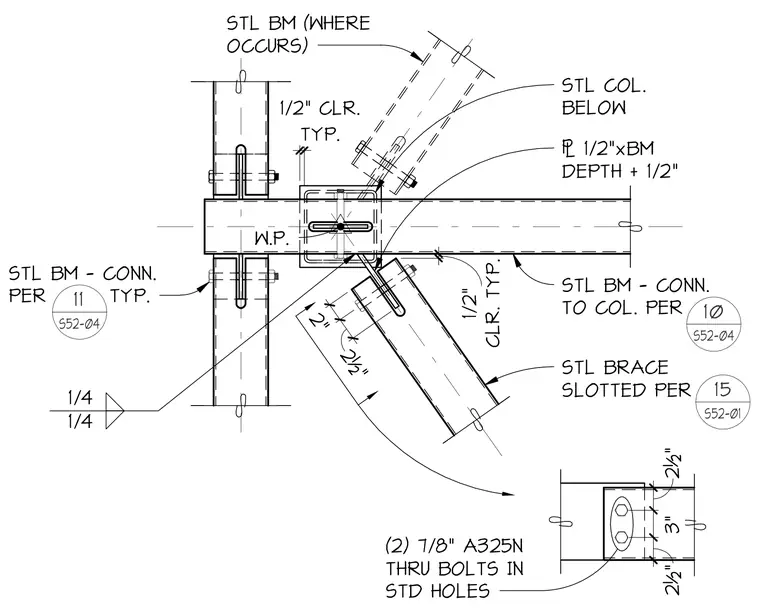

A structural steel brace connects to a steel column below with a half-inch plate sized to the beam depth plus a half-inch. Two seven-eighths-inch A325N through bolts in standard holes secure the connection, with a one-quarter-inch fillet weld indicated at the joint. A steel beam connects to the column per detail specifications, maintaining a typical half-inch clearance. The steel brace is slotted per detail requirements with specific edge and spacing dimensions.
W.P. TYP. 1/2" CLR. 2½" 2" CLR. TYP. 1/2" STL BM (WHERE OCCURS) STL COL. BELOW # 1/2"xBM DEPTH + 1/2" STL BM - CONN. TO COL. PER 10 S52-04 STL BRACE SLOTTED PER 15 S52-01 STL BM - CONN. PER TYP. 11 S52-04 1/4 1/4 2½" 3" 2½" (2) 7/8" A325N THRU BOLTS IN STD HOLES
