Concrete Placement and Slab Deflection Criteria

Materials

Elements

Beams Floors / Slabs Decks Expansion / Control Joints

About this detail

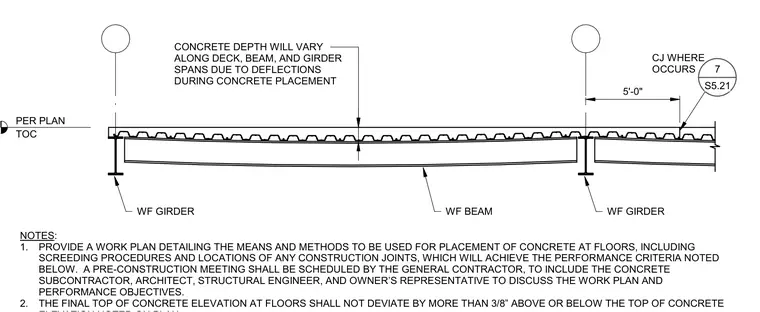

Concrete is poured over a metal deck supported by wide-flange steel girders and wide-flange beams, with concrete depth varying across spans due to structural deflections during placement. Construction joints are placed as required, maintaining a tolerance for the final top of concrete elevation. A contractor work plan and pre-construction meeting are mandated to coordinate screeding procedures and performance criteria among the project team.
