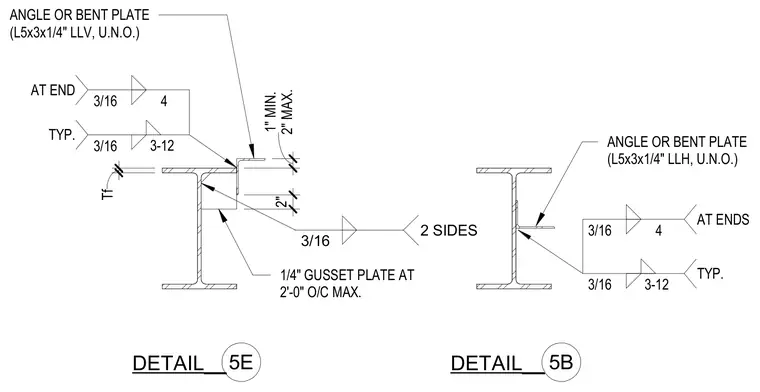

This structural steel detail shows a connection to a wide-flange steel beam utilizing a one-quarter-inch gusset plate spaced at a maximum of two feet on center. An angle or bent plate sized at L5x3x1/4-inch (long leg horizontal or long leg vertical, unless noted otherwise) connects to the flange or web with three-sixteenth-inch fillet welds. Weld patterns specify three-sixteenth-inch welds at four inches on center at the ends, and three-sixteenth-inch welds at three to twelve inches typical spacing. Dimensioning indicates a one-inch minimum to two-inch maximum clearance alongside flange thickness (Tf) references.
1/4" GUSSET PLATE AT 2'-0" O/C MAX. DETAIL__ 5E DETAIL__ 5B 3/16 3-12 TYP. 3/16 4 AT ENDS 3-12 TYP. 3/16 4 AT END 3/16 ANGLE OR BENT PLATE (L5x3x1/4" LLH, U.N.O.) ANGLE OR BENT PLATE (L5x3x1/4" LLV, U.N.O.) 3/16 2 SIDES Tf 2" 2" MAX. 1" MIN.
