Exterior Deck Support at Wide Flange Column Web

Elements

About this detail

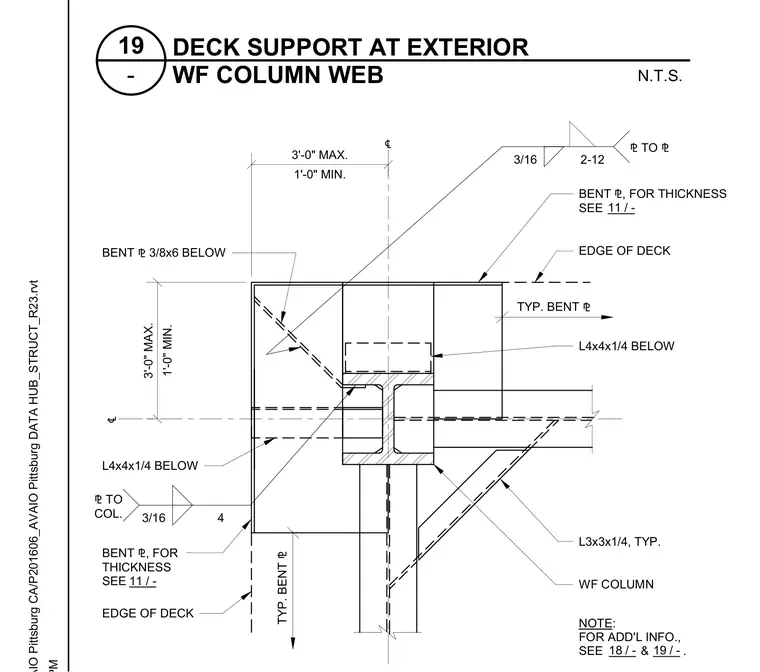

An exterior deck frames into the web of a wide flange column using bent plates and structural angles. The assembly incorporates a 3/8 inch by 6 inch bent plate located below, tied with L4x4x1/4 angles below and connected with three-sixteenths inch fillet welds. A bent plate with thickness referenced from another detail spans the exterior edge of the deck, maintaining a dimensioned overhang ranging from one foot minimum to three feet maximum from the column centerline. Additional L3x3x1/4 typical angles provide further bracing against the wide flange column web. Weld symbols indicate three-sixteenths inch fillet welds attaching the bent plate to the column.
