Structural · S-KS6VQ

Braced Frame Baseplate Detail

Materials

Elements

Walls Shear Walls Floors / Slabs Bracing Connections / Plates Reinforcing

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage Bracing Connection Welded Connection Bolted Connection Rebar Splice / Development

About this detail

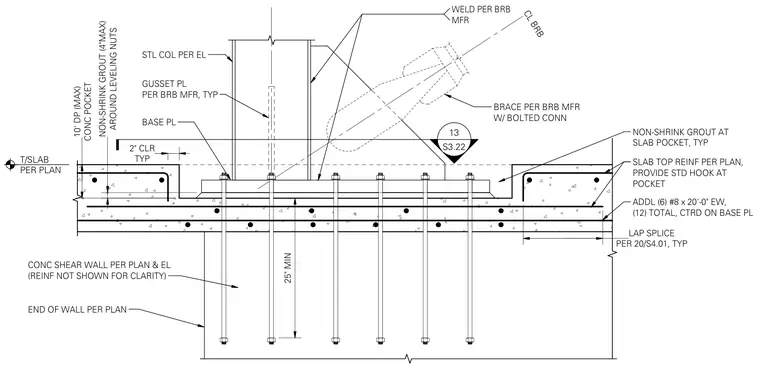

A structural steel column and buckling-restrained brace connection is anchored to a concrete shear wall and slab. The assembly features a base plate set over a concrete pocket, with non-shrink grout placed around leveling nuts and within the slab pocket. A gusset plate connects the buckling-restrained brace to the base assembly, welded according to the manufacturer's specifications and secured with a bolted connection. The supporting concrete shear wall includes additional reinforcing bars centered on the base plate with standard hooks at the slab pocket, accompanied by slab top reinforcement and lap splices as detailed per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
