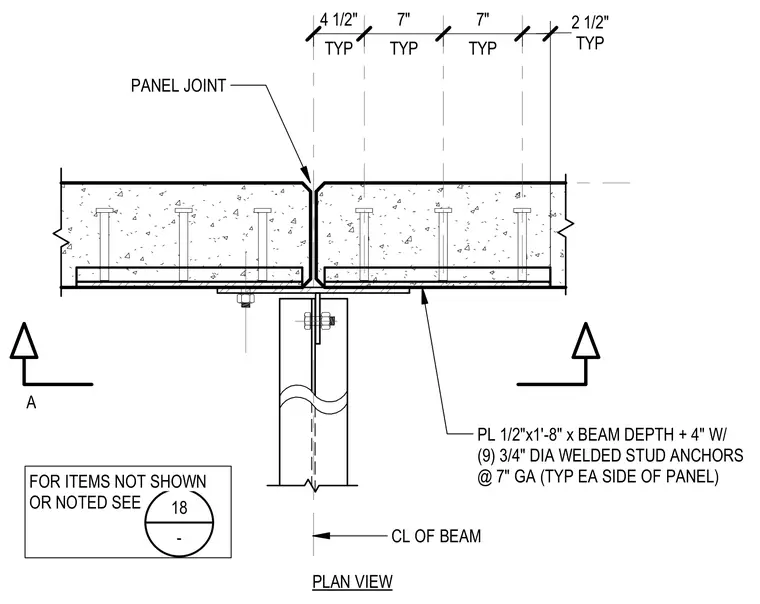

A structural beam frames beneath a precast concrete panel joint, aligning with the centerline of the beam. A half-inch thick steel plate measuring one foot eight inches by the beam depth plus four inches embeds into the underside of the panels. Nine three-quarter inch diameter welded stud anchors at seven-inch gauge spaced across each side of the panel secure the embedded plate. Dimensioned spacing from the panel joint runs four and one-half inches, followed by two intervals of seven inches, and ending with two and one-half inches.
TYP 4 1/2" TYP 7" TYP 7" TYP 2 1/2" PL 1/2"x1'-8" x BEAM DEPTH + 4" W/ (9) 3/4" DIA WELDED STUD ANCHORS @ 7" GA (TYP EA SIDE OF PANEL) CL OF BEAM 18 - FOR ITEMS NOT SHOWN OR NOTED SEE PLAN VIEW A PANEL JOINT
