A column splice between wide flange steel columns of different depths is joined by a 1-1/2 inch thick A572 Grade 50 transition plate. The upper column features a beveled flange as shown on plan and schedule with weld access holes cut at the top and bottom per AWS D1.8. Complete-joint-penetration welds connect each flange, incorporating demand critical welds per general structural notes for inspection requirements. Lift plates are provided on both sides by others and removed from the beveled side of the web. A 4-foot dimension references the finish floor which varies relative to the connection.

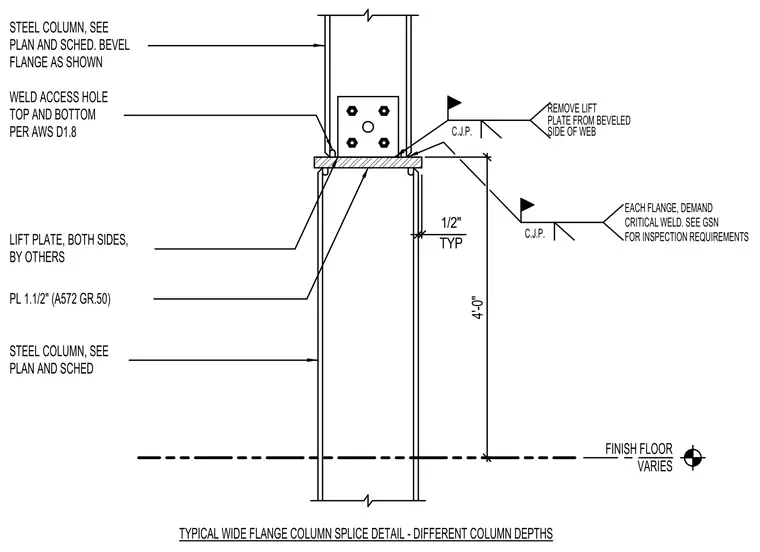

FINISH FLOOR VARIES STEEL COLUMN, SEE PLAN AND SCHED STEEL COLUMN, SEE PLAN AND SCHED. BEVEL FLANGE AS SHOWN LIFT PLATE, BOTH SIDES, BY OTHERS CRITICAL WELD. SEE GSN SIDE OF WEB PLATE FROM BEVELED EACH FLANGE, DEMAND REMOVE LIFT TOP AND BOTTOM WELD ACCESS HOLE C.J.P. C.J.P. FOR INSPECTION REQUIREMENTS TYPICAL WIDE FLANGE COLUMN SPLICE DETAIL - DIFFERENT COLUMN DEPTHS PL 1.1/2" (A572 GR.50) PER AWS D1.8 4'-0" 1/2" TYP
