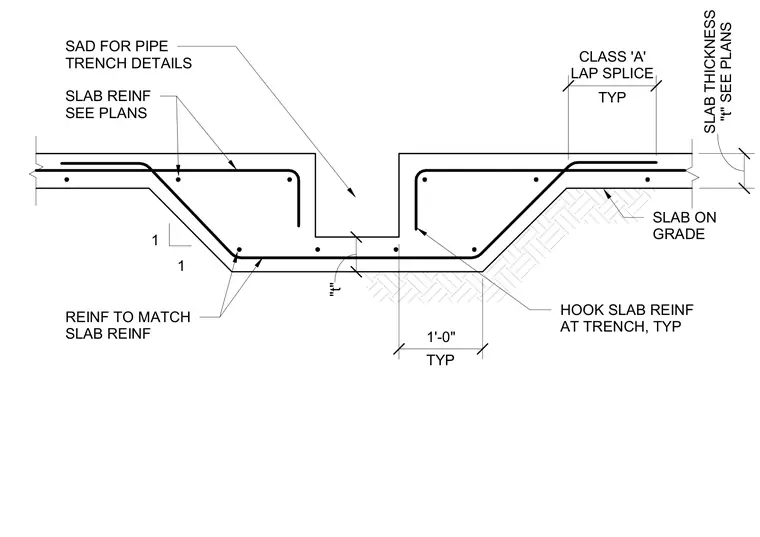

A concrete pipe trench is cast monolithically into a slab on grade with variable thickness 't' sized per the structural plans. Slab reinforcing bars continue into the trench drop, featuring a one-to-one slope and standard hooks at the trench boundary. Reinforcement matching the main slab continues across the bottom of the trench invert. A typical Class A lap splice of one foot zero inches is provided at the slab reinforcing development.
TYP 1 1 SAD FOR PIPE TRENCH DETAILS SLAB REINF SEE PLANS HOOK SLAB REINF AT TRENCH, TYP SLAB ON GRADE REINF TO MATCH SLAB REINF "t" SEE PLANS SLAB THICKNESS TYP CLASS 'A' LAP SPLICE 1'-0" "t"
