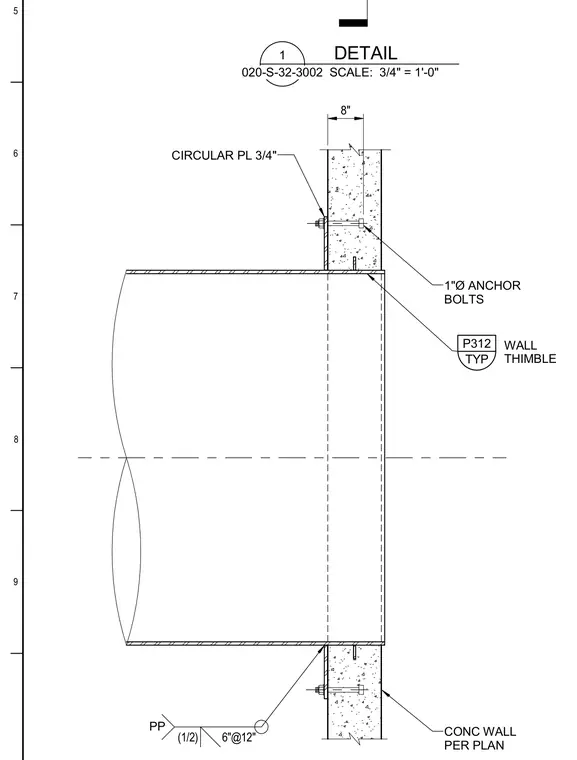

An eight-inch wall thimble penetrates an eight-inch concrete wall sized per plan and is anchored using one-inch diameter anchor bolts fastened with three-quarter-inch circular plates. The thimble is detailed with typical P312 wall thimble connections and reinforced with welds as indicated. Concrete wall dimensions and configurations are coordinated per plan.
8" PP (1/2) 6"@12" WALL THIMBLE TYP P312 1"Ø ANCHOR BOLTS CIRCULAR PL 3/4" CONC WALL PER PLAN 9 8 7 6 5 020-S-32-3002 SCALE: 3/4" = 1'-0" 1 DETAIL
