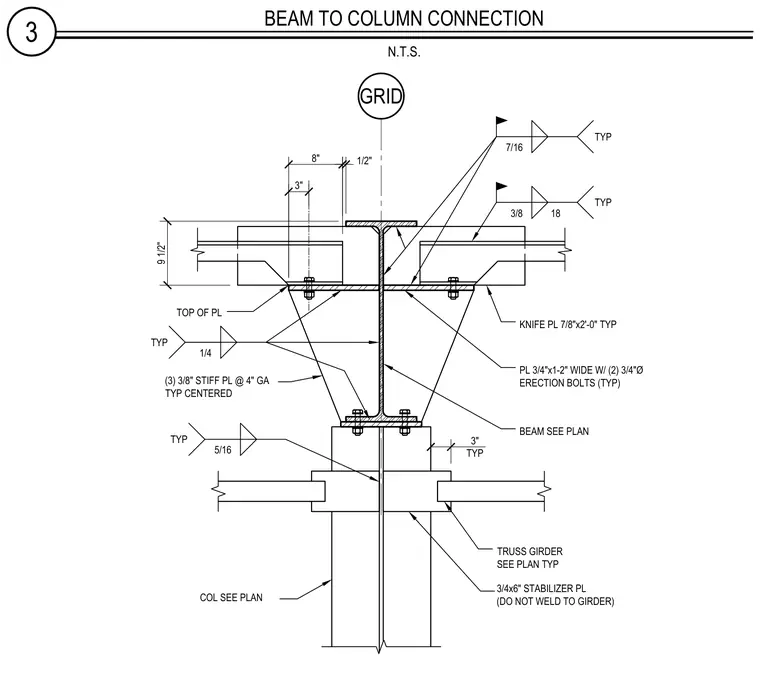

A beam-to-column connection aligns with a grid line. A 7/8-inch by 2-foot knife plate connects the framing, secured with a 3/4-inch by 1-foot-2-inch wide plate utilizing two 3/4-inch diameter erection bolts. Three 3/8-inch stiffener plates spaced at 4-inch gauge are centered on the assembly with 7/16-inch and 3/8-inch welds. A 3/4-inch by 6-inch stabilizer plate is included but left unwelded to the girder. A 1/4-inch fillet weld secures the column web, while a 5/16-inch weld anchors the lower connection.
3 BEAM TO COLUMN CONNECTION N.T.S. 9 1/2" 3" COL SEE PLAN TRUSS GIRDER SEE PLAN TYP BEAM SEE PLAN (3) 3/8" STIFF PL @ 4" GA TYP CENTERED 7/16 TYP GRID 3/8 18 TYP KNIFE PL 7/8"x2'-0" TYP 1/4 TYP 5/16 TYP 8" 1/2" PL 3/4"x1-2" WIDE W/ (2) 3/4"Ø ERECTION BOLTS (TYP) 3/4x6" STABILIZER PL (DO NOT WELD TO GIRDER) TOP OF PL 3" TYP
