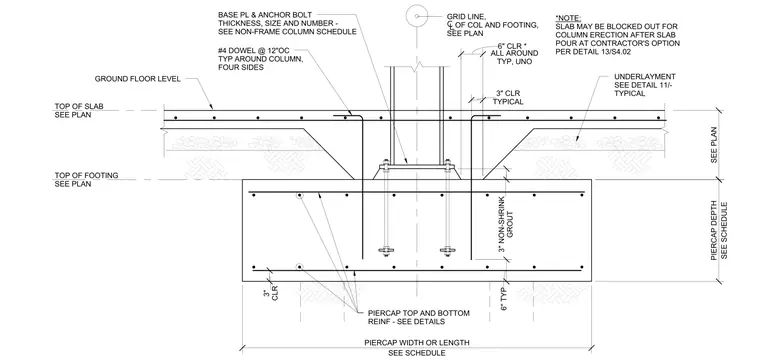

A structural steel column is anchored to a concrete pier cap and footing using a base plate and anchor bolts sized per the non-frame column schedule. The pier cap sits on a prepared subgrade with a three-inch non-shrink grout layer beneath the base plate and standard three-inch concrete clear cover. Number four dowels at twelve inches on center are placed typically around the column on all four sides. The surrounding concrete slab features a block-out option for column erection after the main slab pour, with underlayment detailed separately.
ALL AROUND TYP, UNO PIERCAP TOP AND BOTTOM REINF - SEE DETAILS GROUND FLOOR LEVEL TOP OF SLAB SEE PLAN BASE PL & ANCHOR BOLT THICKNESS, SIZE AND NUMBER - SEE NON-FRAME COLUMN SCHEDULE *NOTE: SLAB MAY BE BLOCKED OUT FOR COLUMN ERECTION AFTER SLAB POUR AT CONTRACTOR'S OPTION PER DETAIL 13/S4.02 UNDERLAYMENT SEE DETAIL 11/- TYPICAL GRID LINE, OF COL AND FOOTING, SEE PLAN #4 DOWEL @ 12"OC TYP AROUND COLUMN, FOUR SIDES SEE SCHEDULE PIERCAP WIDTH OR LENGTH SEE SCHEDULE PIERCAP DEPTH . GROUT 3" NON-SHRINK 6" CLR * SEE PLAN TOP OF FOOTING SEE PLAN 6" TYP TYPICAL 3" CLR CLR 3"
