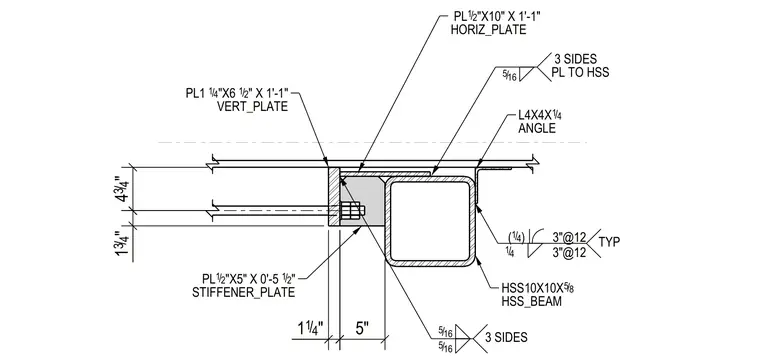

A threaded rod connects to a vertical plate measuring one and one-quarter inches by six and one-half inches by one foot one inch, backed by a horizontal plate measuring one-half inch by ten inches by one foot one inch. A stiffener plate measuring one-half inch by five inches by zero feet five and one-half inches supports the assembly against the hollow structural section beam, specified as HSS10x10x5/8. An angle measuring four by four by one-quarter inches ties into the top flange of the HSS beam. Five-sixteenths fillet welds join the plates to the HSS member on three sides. A smaller angle connection uses one-quarter-inch fillet welds spaced at three inches on center typical.
1 14 / " 516 / 516 / 3 SIDES PL1 14 / "X6 12 / " X 1'-1" VERT_PLATE PL 12 / "X10" X 1'-1" HORIZ_PLATE PL 12 / "X5" X 0'-5 12 / " STIFFENER_PLATE HSS10X10X 58 / HSS_BEAM L4X4X 14 / ANGLE ( 14 / ) 3"@12 14 / 3"@12 TYP 516 / 3 SIDES PL TO HSS 5" 4 34 / " 1 34 / "
