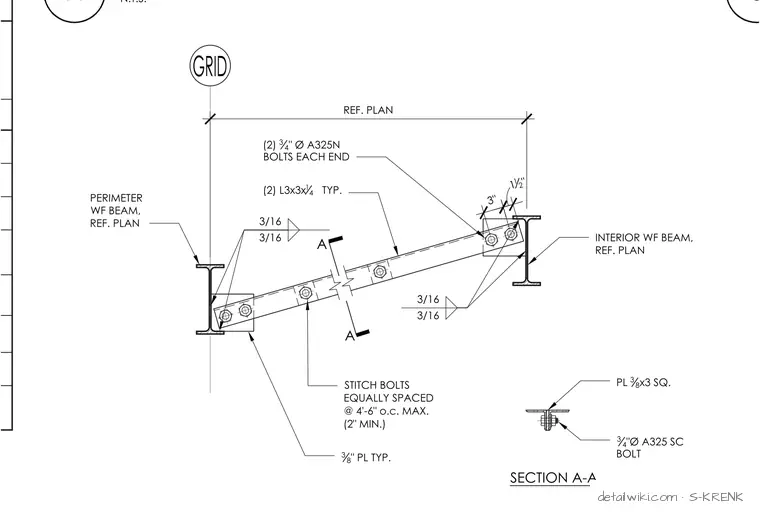

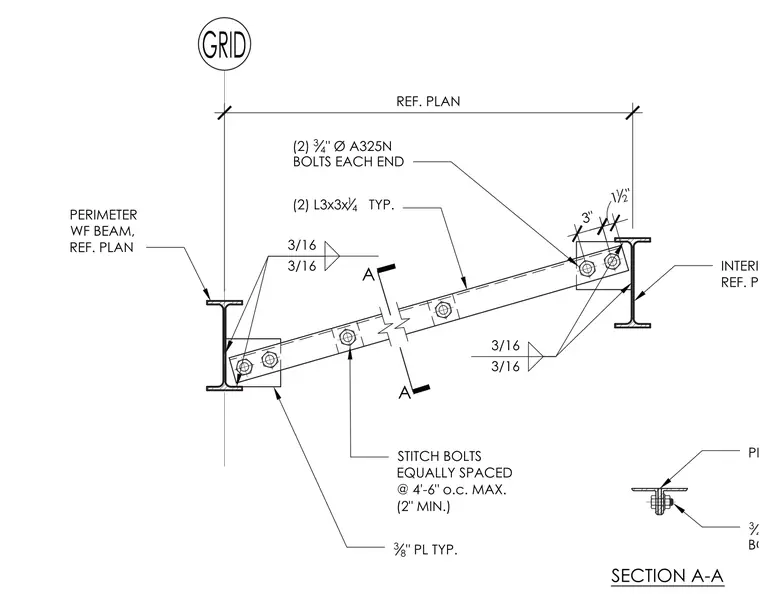

An angle strut consisting of two L3x3x1/4 angles is connected between a perimeter wide-flange beam and an interior wide-flange beam. Connection at each end utilizes three-eighths-inch plates welded with three-sixteenths-inch fillet welds and fastened with two three-quarters-inch diameter A325N bolts. The double angles are joined along their length with stitch bolts spaced at four feet six inches on center maximum with a two-inch minimum. Section A-A details a three-eighths-inch square plate secured with a three-quarters-inch diameter A325 slip-critical bolt.
6 REF. PLAN 1 12 " 3" A SECTION A-A A 3 4 "Ø A325 SC BOLT PERIMETER WF BEAM, REF. PLAN (2) L3x3x 1 4 TYP. 3/16 3/16 PL 3 8 x3 SQ. (2) 3 4 " Ø A325N BOLTS EACH END 3 8 " PL TYP. STITCH BOLTS EQUALLY SPACED @ 4'-6" o.c. MAX. (2" MIN.) 3/16 3/16 INTERIOR WF BEAM, REF. PLAN 11 N.T.S.
