A supported steel beam connects to a supporting steel beam via a bolted shear tab and welded 3/8-inch full-height stiffener plates. The shear tab is fastened with bolts sized per engineering notes, while 3/8-inch by 4-inch minimum plates match the beam flange width on each side. Fillet welds of 1/4-inch size secure the stiffeners on three sides and the shear tab connections accordingly. Weld backup plates are specified in the notes but omitted from the graphic for clarity.

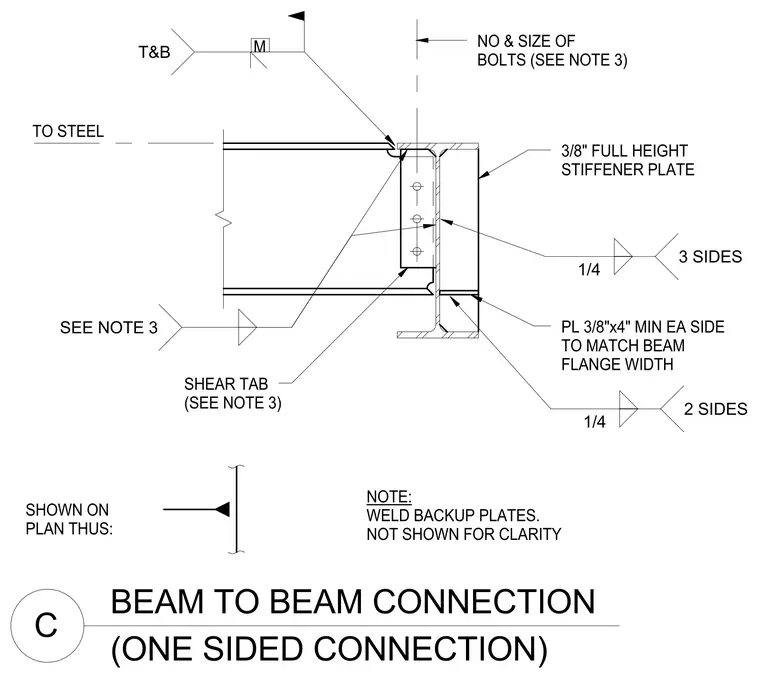

BEAM TO BEAM CONNECTION C (ONE SIDED CONNECTION) SHOWN ON PLAN THUS: TO STEEL NOTE: WELD BACKUP PLATES. NOT SHOWN FOR CLARITY NO & SIZE OF BOLTS (SEE NOTE 3) SHEAR TAB (SEE NOTE 3) 3/8" FULL HEIGHT STIFFENER PLATE PL 3/8"x4" MIN EA SIDE TO MATCH BEAM FLANGE WIDTH M T&B 1/4 3 SIDES SEE NOTE 3 1/4 2 SIDES
