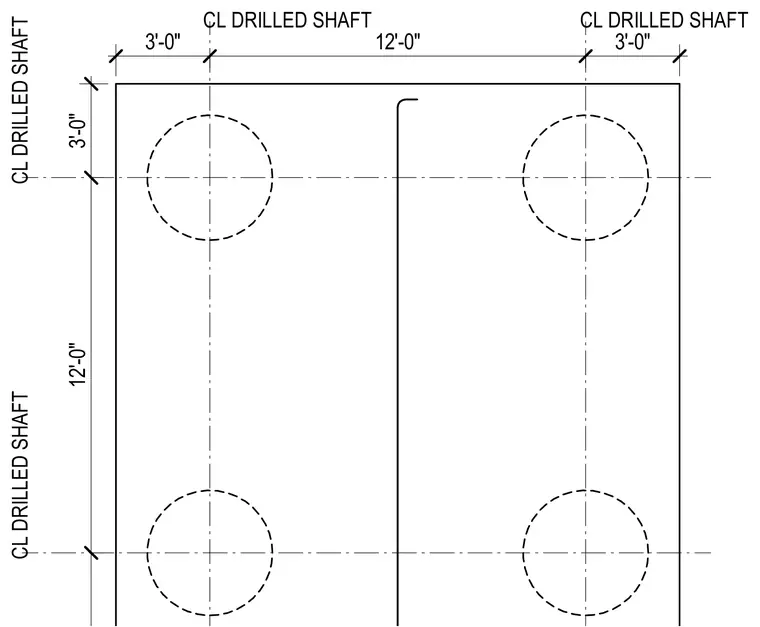

Centerlines and dimensional layout are established for four drilled shafts. A twelve-foot spacing is maintained between shaft centerlines alongside three-foot edge clearances. Centerline grid intersections define the precise positioning of each drilled shaft within the foundation element.
CL DRILLED SHAFT CL DRILLED SHAFT CL DRILLED SHAFT 12'-0" 3'-0" 3'-0" 12'-0" 3'-0" CL DRILLED SHAFT
