Structural · S-KRB9T

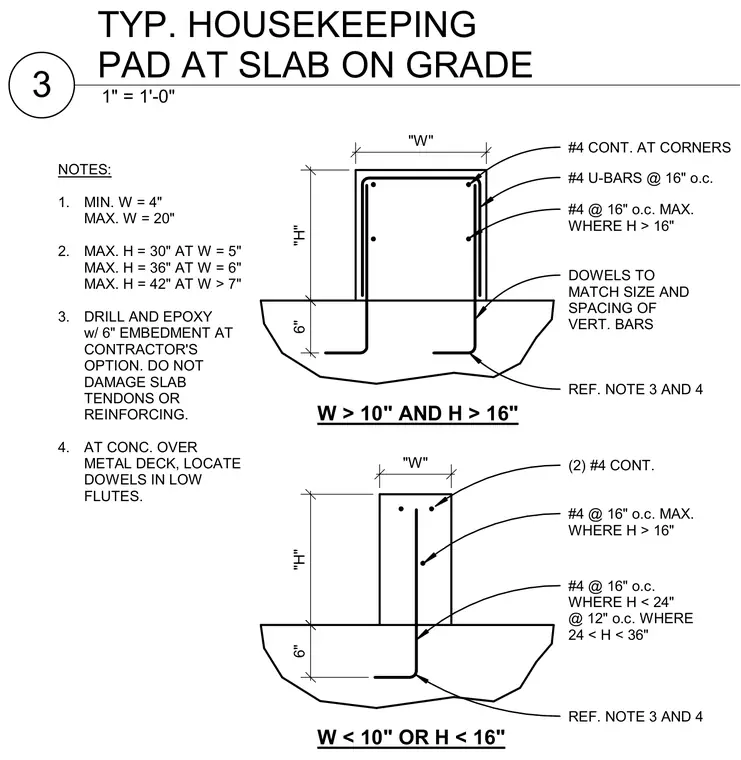

Typical Housekeeping Pad at Slab on Grade

Materials

Concrete Reinforced Concrete Metal (misc.)

Elements

Floors / Slabs Decks Site / Paving Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Embed Plate

About this detail

This structural detail provides sizing criteria and reinforcing schedules for concrete housekeeping pads supported on a slab on grade. The assembly accommodates varying widths and heights, using drilled and epoxy-set dowels with six inches of embedment into the existing concrete slab at the contractor's option, taking care to avoid slab tendons and reinforcing. For pads where width exceeds ten inches and height exceeds sixteen inches, reinforcement consists of continuous number four bars at corners, number four U-bars spaced at sixteen inches on center, and vertical dowels matching the size and spacing of vertical bars. For smaller pads where width is under ten inches or height is under sixteen inches, reinforcement utilizes two continuous number four bars and vertical dowels spaced according to pad height dimensions. When anchoring into concrete placed over metal deck, dowels must be located within the low flutes.
