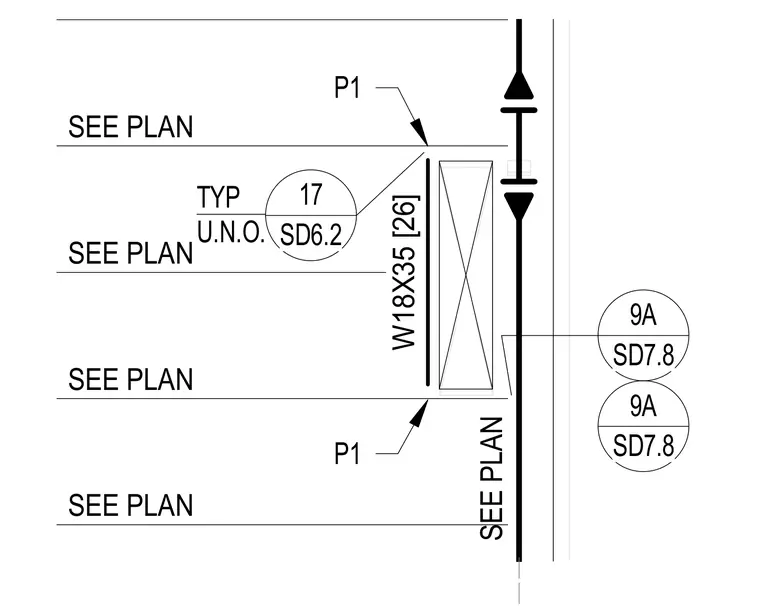

This structural detail shows a typical Type B shaft framing condition featuring a W18x35 steel wide-flange beam. The member placement is typically verified per the structural floor plans unless noted otherwise. Detail callouts reference sheet SD6.2 and SD7.8 for related connections and conditions.
P1 TYP U.N.O. P1 W18X35 [26] 9A SD7.8 17 SD6.2 SEE PLAN SEE PLAN SEE PLAN SEE PLAN SEE PLAN 9A SD7.8
