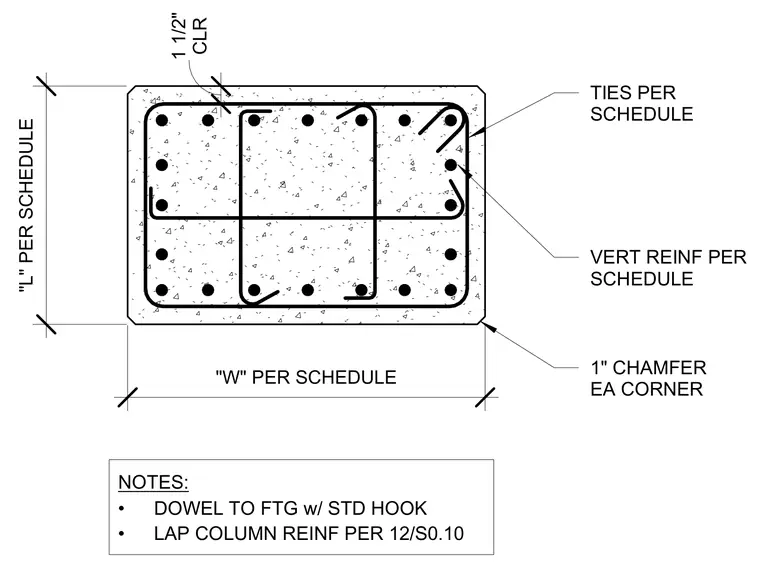

This concrete column detail shows vertical reinforcement and tie configurations sized per the structural schedule. The rectangular profile includes a one-inch chamfer at each corner and maintains a one-and-a-half-inch concrete clear cover. Column reinforcing dowels connect to the footing with standard hooks and lap per sheet reference 12/S0.10.
"L" PER SCHEDULE "W" PER SCHEDULE TIES PER SCHEDULE VERT REINF PER SCHEDULE 1" CHAMFER EA CORNER NOTES: • DOWEL TO FTG w/ STD HOOK • LAP COLUMN REINF PER 12/S0.10 CLR 1 1/2"
