Structural · S-KR5S7

Cold-Formed Metal Stud Wind Girt and Wall Framing Details

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Columns Beams Walls Arches Insulation Connections / Plates

Connections

Deck Attachment

About this detail

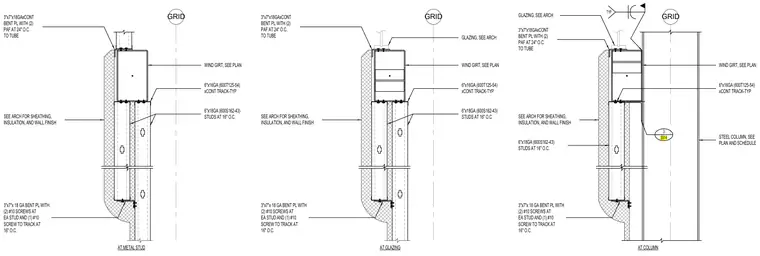

Cold-formed steel framing connects at a wind girt condition across three typical building junctions: at a standard metal stud wall, at glazing, and at a structural steel column. The assembly utilizes a continuous 3-inch by 7-inch by 18-gauge bent plate anchored to a 6-inch by 16-gauge continuous track (600T125-54) using two powder-actuated fasteners at 24 inches on center. Framing consists of 6-inch by 18-gauge studs (600S162-43) spaced at 16 inches on center, secured to the bent plate with two number 10 screws at each stud and one number 10 screw to the track at 16 inches on center. Exterior sheathing, insulation, and wall finishes are coordinated per architectural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
