Structural · S-KQNMQ

Cable Net Connection Blockout at Concrete Beam

Materials

Concrete Timber / Wood Glass / Glazing

Elements

Beams Walls Floors / Slabs Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Bolted Connection Rebar Splice / Development Embed Plate

About this detail

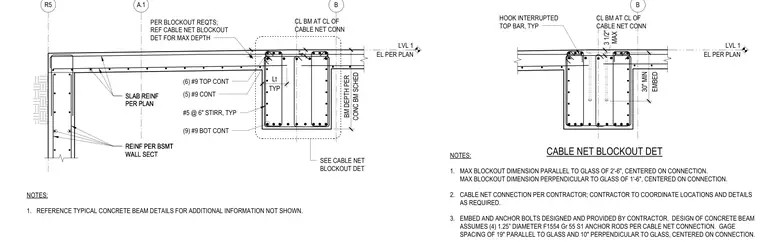

A concrete beam and slab assembly configured with a blockout for a cable net connection. The concrete beam features top and bottom continuous reinforcing bars along with transverse stirrups spaced at six inches on center. The cable net blockout requires a maximum dimension of two feet six inches parallel to the glass and one foot six inches perpendicular to the glass, centered on the connection. Anchor bolts for the connection require one point two five inch diameter ASTM F1554 Grade 55 anchor rods with a gage spacing of nineteen inches parallel to the glass and ten inches perpendicular to the glass, with an embedment length of thirty inches minimum.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
