An interior steel beam supports perpendicular Comflor metal decking and a concrete slab per structural plans. Nelson shear studs welded through the deck to the top flange provide composite action. Where the decking runs continuous over the beams, HD12x1200 reinforcing saddle bars are installed at six hundred millimeters on center.

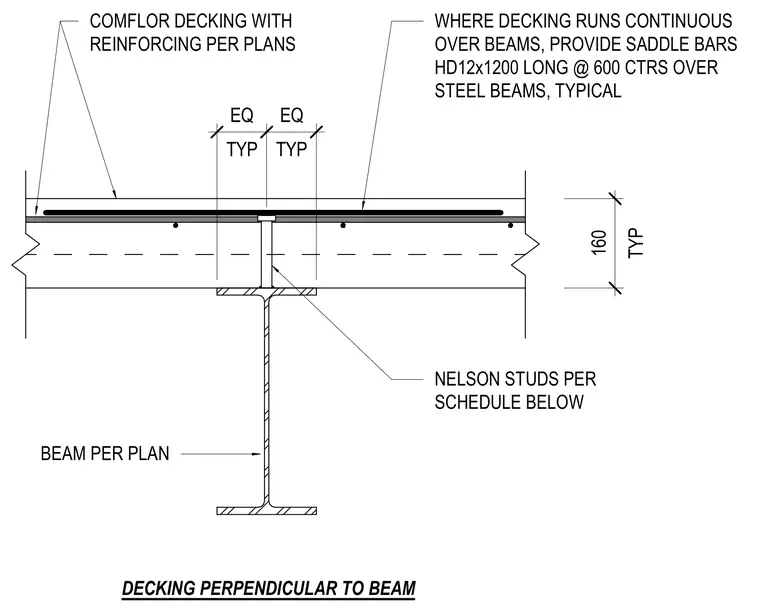

BEAM PER PLAN NELSON STUDS PER SCHEDULE BELOW DECKING PERPENDICULAR TO BEAM TYP 160 TYP EQ TYP EQ COMFLOR DECKING WITH REINFORCING PER PLANS WHERE DECKING RUNS CONTINUOUS OVER BEAMS, PROVIDE SADDLE BARS HD12x1200 LONG @ 600 CTRS OVER STEEL BEAMS, TYPICAL
