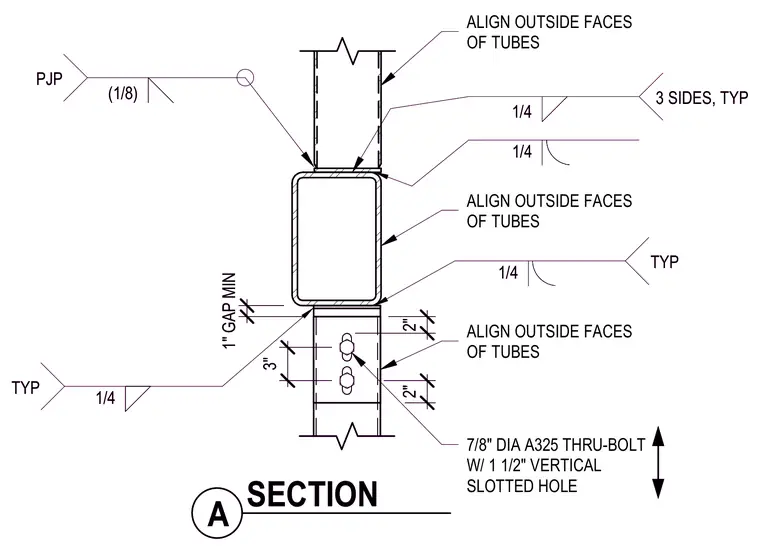

A spliced connection between hollow structural section members features a one-inch minimum gap and aligned outside faces. The upper tubular member connects via partial-joint-penetration welds and quarter-inch fillet welds on three sides. The lower tubular member utilizes seven-eighths-inch diameter A325 through-bolts installed in one-and-a-half-inch vertical slotted holes with two-inch edge distances and three-inch spacing. All mating tube faces are specified to align continuously.
1/4 3 SIDES, TYP A SECTION 1" GAP MIN 2" 7/8" DIA A325 THRU-BOLT W/ 1 1/2" VERTICAL SLOTTED HOLE (1/8) PJP ALIGN OUTSIDE FACES OF TUBES 1/4 TYP 1/4 TYP 1/4 ALIGN OUTSIDE FACES OF TUBES ALIGN OUTSIDE FACES OF TUBES 3" 2" 1/4 3 SIDES, TYP A SECTION 1" GAP MIN 2" 7/8" DIA A325 THRU-BOLT W/ 1 1/2" VERTICAL SLOTTED HOLE (1/8) PJP ALIGN OUTSIDE FACES OF TUBES 1/4 TYP 1/4 TYP 1/4 ALIGN OUTSIDE FACES OF TUBES ALIGN OUTSIDE FACES OF TUBES 3" 2"
