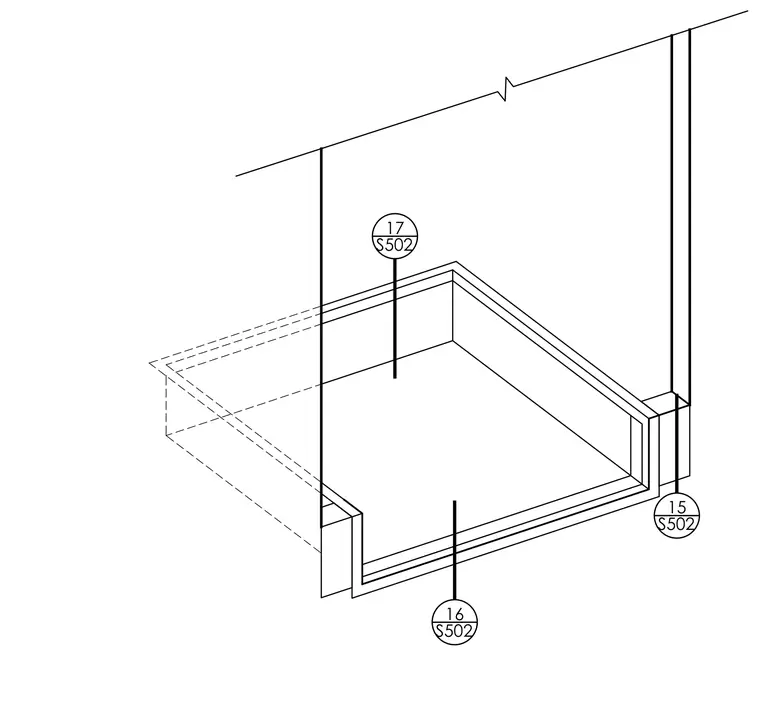

Hanger placement requirements near the perimeter of a suspended element. Vertical hanger rods attach near each edge of the assembly, designated by detail callouts referencing sheet S502.
