Post to Spreader Beam Connection

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Walls Stairs Floors / Slabs Anchors / Embeds Connections / Plates

Connections

HSS Connection Bolted Connection Embed Plate Expansion / Slip Connection

About this detail

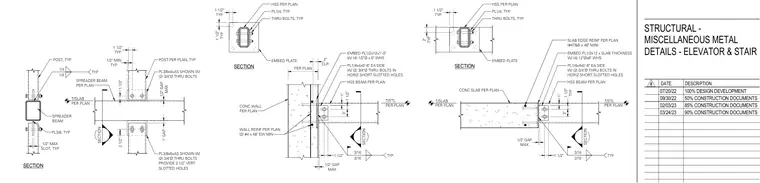

This structural connection detail shows a hollow structural section post framing into a spreader beam with a bolted plate assembly. The connection utilizes plate sizes of 3/8-inch thickness with two 3/4-inch diameter through bolts, featuring vertical slotted holes allowing for a maximum 1/2-inch gap. Fillet welds of 1/4-inch size secure the connection plates to the framing members as indicated. Additional embedded plate and slab connections anchor the structural steel components to concrete elements.
