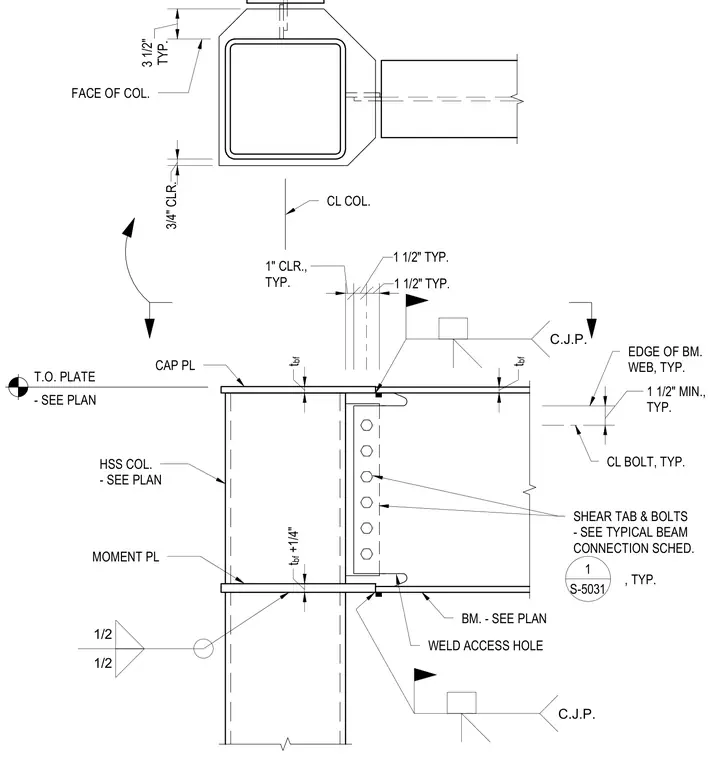

A structural steel beam frames into a hollow structural section column using a welded moment connection and a bolted shear tab. Top and bottom moment plates welded to the column flanges connect to the beam flanges with complete joint penetration welds and weld access holes. A shear tab welded to the column face bolts to the beam web per the typical beam connection schedule. Clearances, edge distances, and plate dimensions are detailed in plan and elevation.
CL COL. 1" CLR., TYP. 1 1/2" MIN., TYP. HSS COL. - SEE PLAN C.J.P. 1 1/2" TYP. 1 1/2" TYP. CAP PL EDGE OF BM. WEB, TYP. CL BOLT, TYP. BM. - SEE PLAN WELD ACCESS HOLE SHEAR TAB & BOLTS - SEE TYPICAL BEAM CONNECTION SCHED. , TYP. MOMENT PL 1/2 1/2 T.O. PLATE - SEE PLAN 3/4" CLR. TYP. 3 1/2" FACE OF COL. 1 S-5031 t bf t bf t bf +1/4" C.J.P.
