A slotted hollow structural section beam frames into a supporting steel column centered on the column centerline below. A three-eighths-inch stiffener plate is welded to each side of the steel beam, centered on the column. Angles measuring four by four by one-quarter inch by three inches long attach to each side of the stiffener plate. Three-sixteenths-inch fillet welds secure the hollow structural section to the angle on three sides, and three-sixteenths-inch welds attach the components typically around three sides.

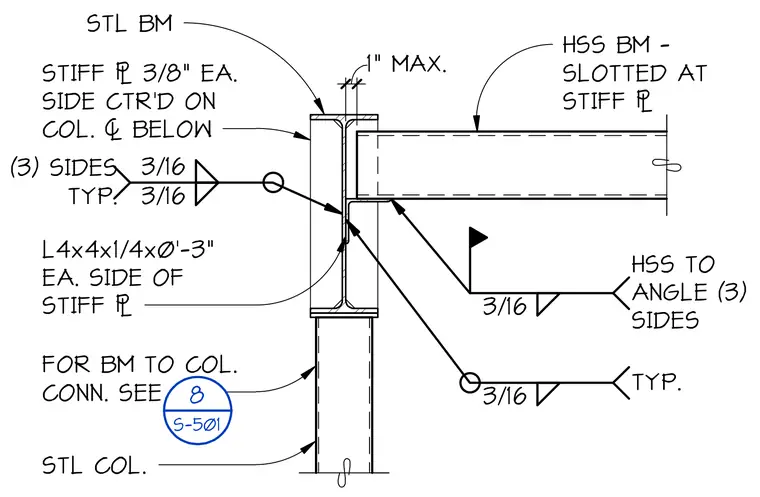

1" MAX. HSS BM - SLOTTED AT STIFF STL BM STIFF 3/8" EA. SIDE CTR'D ON COL. BELOW L4x4x1/4x0'-3" EA. SIDE OF STIFF FOR BM TO COL. CONN. SEE 3/16 3/16 (3) SIDES TYP. 8 S-501 STL COL. 3/16 HSS TO ANGLE (3) SIDES 3/16 TYP.
