Structural · S-KQ3CJ

Column Base Plate

Materials

Concrete Steel Masonry / CMU

Elements

Columns Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Embed Plate

About this detail

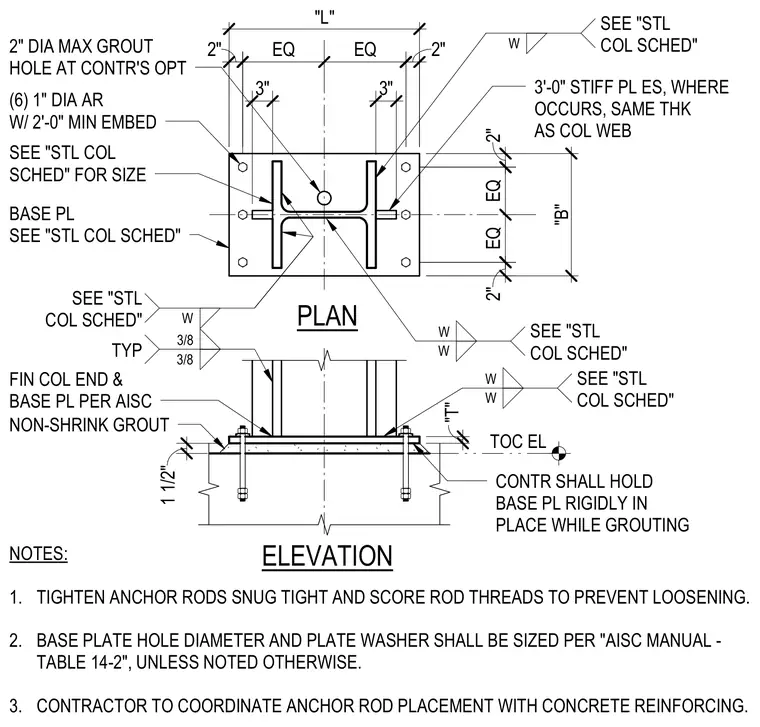

This structural steel column base plate assembly features a steel column welded to a base plate with three-eighths-inch fillet welds, secured by six one-inch diameter anchor rods with a two-foot minimum embedment length. A two-inch diameter maximum grout hole is provided at the contractor's option in the base plate, which sits over one and a half inches of non-shrink grout. Stiffener plates, matching the thickness of the column web, are welded where specified. The finished column end and base plate are fabricated per AISC standards, with anchor rods tightened snug tight and threads scored to prevent loosening. Plate washers and hole diameters are sized per the AISC Manual Table 14-2, and the contractor must hold the base plate rigidly in place during grouting while coordinating anchor rod placement with concrete reinforcing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
