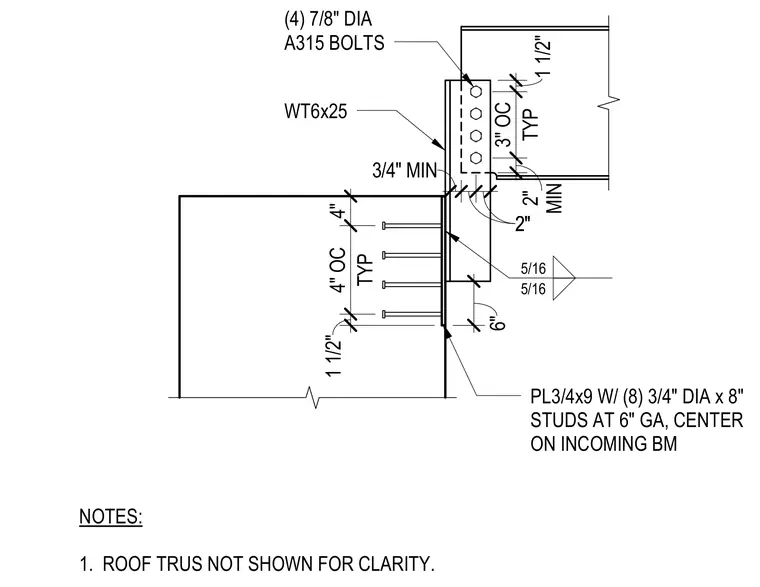

A WT6x25 structural tee connects to an embedded steel plate with eight three-quarter-inch diameter by eight-inch studs at six-inch gauge, centered on the incoming beam. Four seven-eighths-inch diameter A315 bolts secure the web of the WT shape. A plate measuring three-quarters by nine inches anchors the assembly with five-sixteenth-inch fillet welds. The roof truss is omitted for clarity.
NOTES: 1. ROOF TRUS NOT SHOWN FOR CLARITY. 1 1/2" TYP 3" OC MIN 2" 3/4" MIN 2"2" 1 1/2" TYP 4" OC 4" (4) 7/8" DIA A315 BOLTS WT6x25 6" PL3/4x9 W/ (8) 3/4" DIA x 8" STUDS AT 6" GA, CENTER ON INCOMING BM 5/16 5/16
