Buckling-restrained braced frame beam-to-column connections feature framing configurations at both the column flange and the column web. Steel beams frame into the structural steel columns using bolted shear tabs located on each side of the column. Continuity plates are provided across the column web aligned with the beam flanges per specified project details. Collector connections tie into the steel beam and column assembly as indicated on the framing plans and elevations.

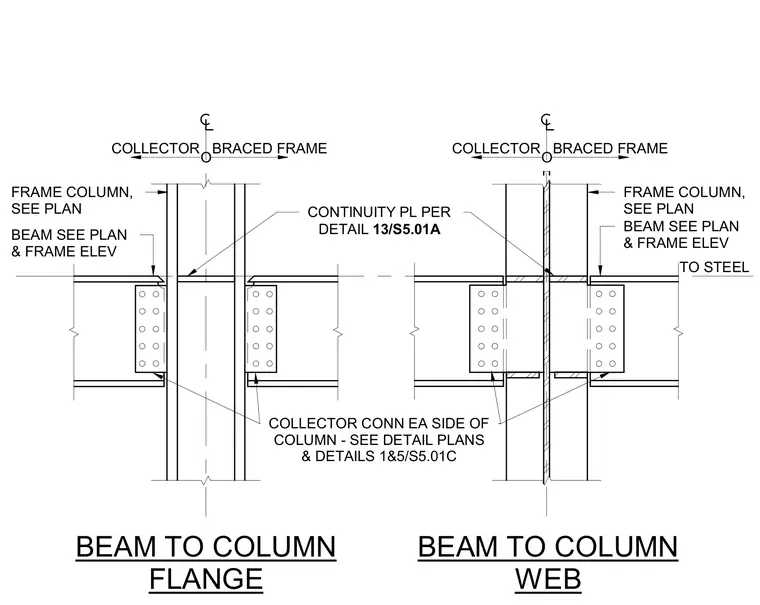

COLLECTOR CONN EA SIDE OF COLUMN - SEE DETAIL PLANS & DETAILS 1&5/S5.01C BEAM SEE PLAN & FRAME ELEV FRAME COLUMN, SEE PLAN CONTINUITY PL PER DETAIL 13/S5.01A O BRACED FRAME COLLECTOR TO STEEL BEAM TO COLUMN FLANGE BEAM TO COLUMN WEB O BRACED FRAME COLLECTOR BEAM SEE PLAN & FRAME ELEV FRAME COLUMN, SEE PLAN
