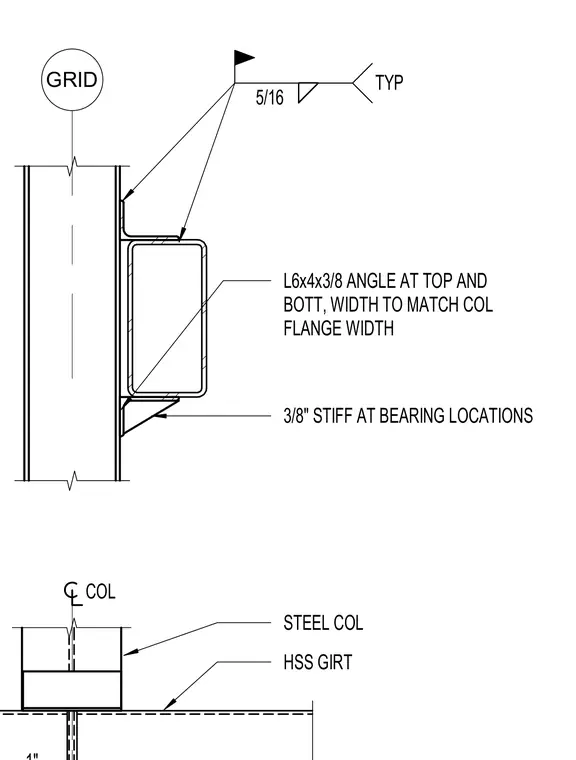

An HSS girt connects to a steel column flange using an L6x4x3/8 angle at both the top and bottom, with the angle width matched to the column flange width. A five-sixteenth-inch typical fillet weld secures the angle to the girt and column. A three-eighth-inch stiffener plate is provided beneath the bottom angle at bearing locations.
COL L6x4x3/8 ANGLE AT TOP AND BOTT, WIDTH TO MATCH COL FLANGE WIDTH 5/16 TYP GRID 3/8" STIFF AT BEARING LOCATIONS HSS GIRT STEEL COL
