An 8-inch thick concrete slab-on-grade assembly is reinforced with number 4 rebar spaced at 18 inches on center. Sawcut contraction joints or construction joints are provided as required, with base course and sub-base specifications referenced in general notes. Vapor retarder is noted as none.

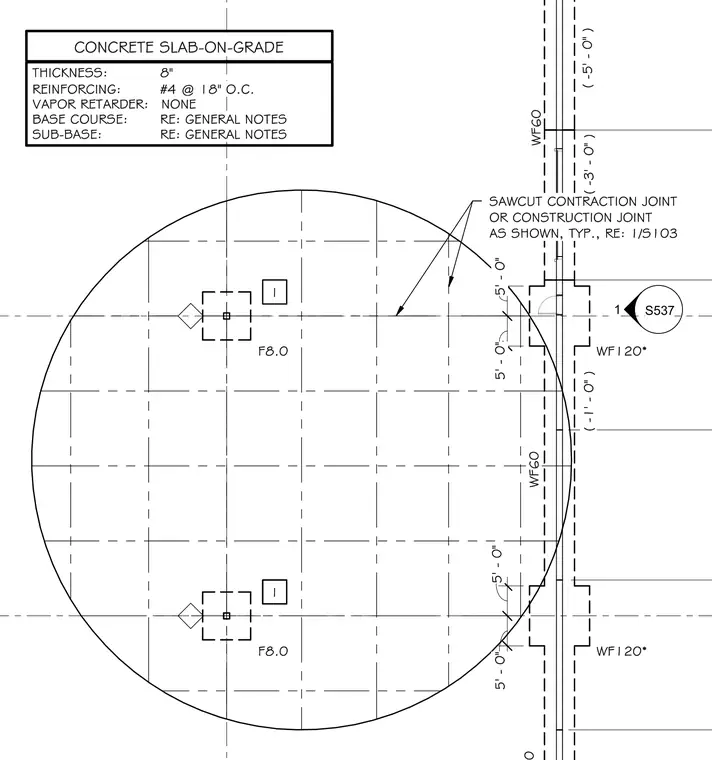

SAWCUT CONTRACTION JOINT OR CONSTRUCTION JOINT AS SHOWN, TYP., RE: 1/S103 F8.0 F8.0 1 1 1 THICKNESS: REINFORCING: VAPOR RETARDER: BASE COURSE: SUB-BASE: CONCRETE SLAB-ON-GRADE 8" #4 @ 18" O.C. NONE RE: GENERAL NOTES RE: GENERAL NOTES WF120* WF60 WF60 WF120* 5' - 0" 5' - 0" 5' - 0" 5' - 0" S537 1 ( -5' - 0" ) ( -3' - 0" ) ( -1' - 0" )
