Typical Depressed Slab On Grade Details

About this detail

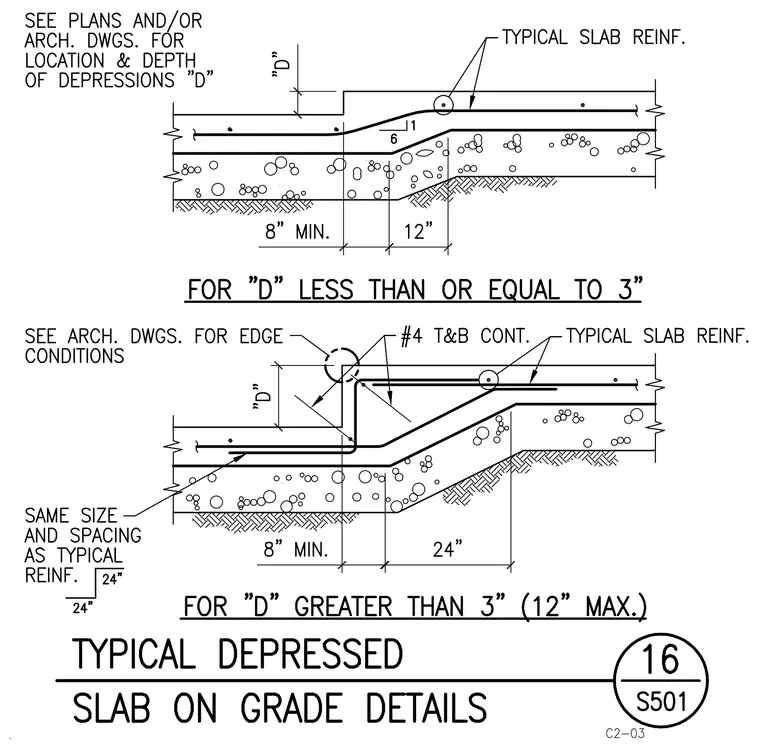

The drawing details two conditions for depressed slabs on grade based on depression depth "D". For depths less than or equal to three inches, the slab transitions with a one-to-six slope, requiring eight inches minimum bottom flat width, twelve inches slope dimension, and typical slab reinforcement. For depths greater than three inches up to a maximum of twelve inches, the transition requires continuous number four top and bottom reinforcement, an eight-inch minimum flat width, a twenty-four-inch slope dimension, and typical slab reinforcement with matching size and spacing. Notes direct the builder to architectural and structural drawings for specific locations, depths, and edge conditions.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
