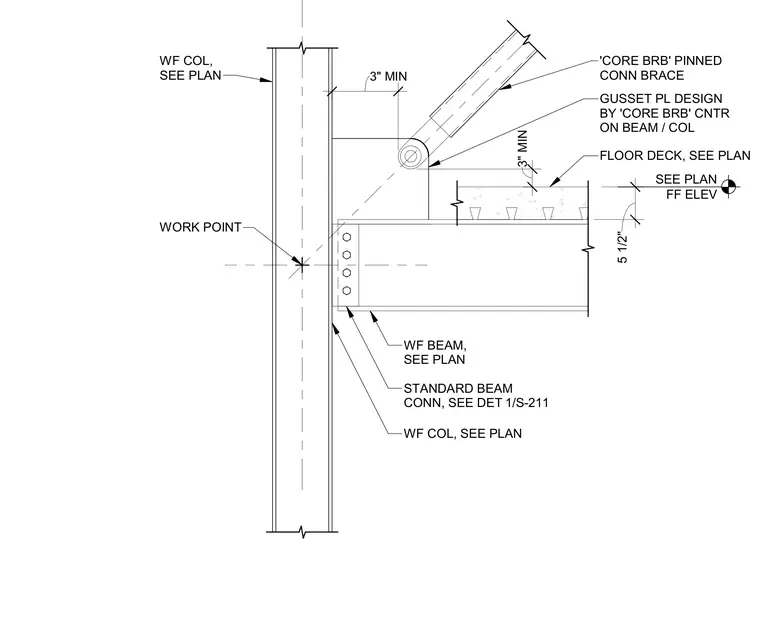

A wide flange brace with a pinned connection attaches to a gusset plate centered on the intersecting wide flange column and wide flange floor beam. The gusset plate design is provided by the manufacturer. A standard beam connection with four bolts secures the floor beam to the column. The floor deck and finished floor elevation are positioned relative to the structural members.
SEE PLAN FF ELEV WF BEAM, SEE PLAN WF COL, SEE PLAN STANDARD BEAM CONN, SEE DET ---------. GUSSET PL DESIGN BY 'CORE BRB' CNTR ON BEAM / COL 3" MIN 'CORE BRB' PINNED CONN BRACE WF COL, SEE PLAN WORK POINT 5 1/2" 3" MIN FLOOR DECK, SEE PLAN 1/S-211
