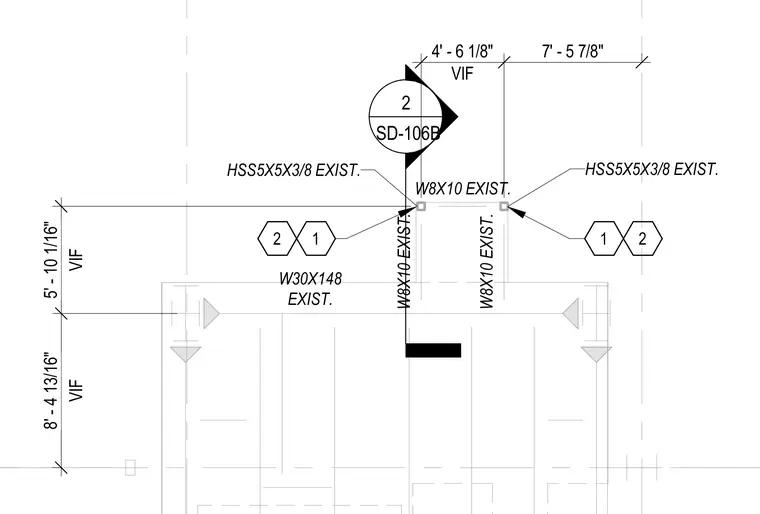

Existing structural steel framing consists of W8x10 beams supported by an existing W30x148 girder and flanked by existing HSS 5x5x3/8 hollow structural section columns. Dimensions are verified in the field to coordinate existing member locations. The assembly provides structural support utilizing existing steel framing elements.
2 SD-106B W8X10 EXIST. W8X10 EXIST. W8X10 EXIST. W30X148 EXIST. HSS5X5X3/8 EXIST. HSS5X5X3/8 EXIST. 1 1 VIF 4' - 6 1/8" 7' - 5 7/8" VIF 8' - 4 13/16" VIF 5' - 10 1/16" 2 2
